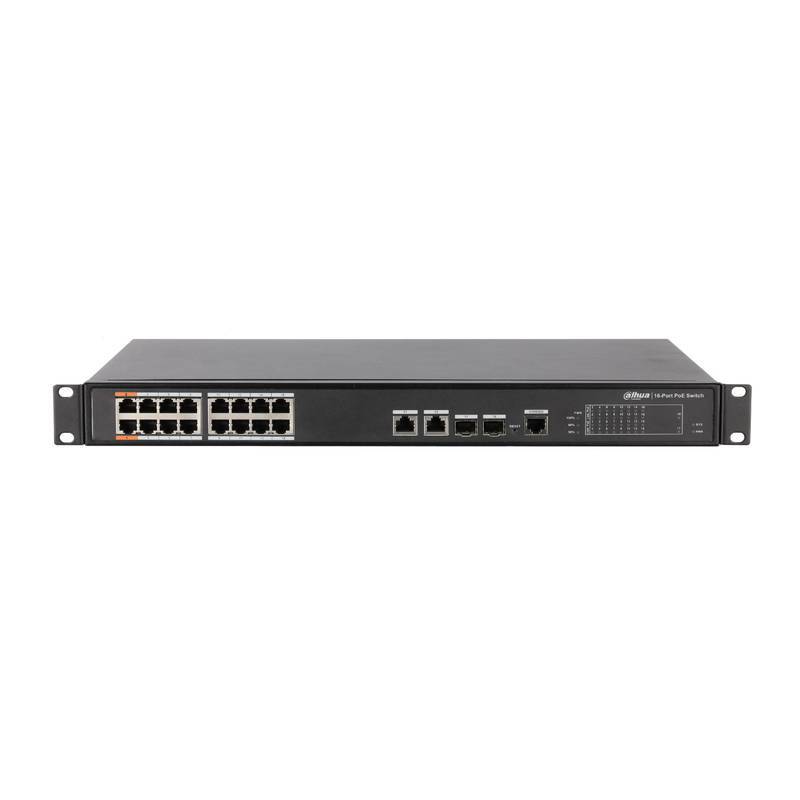

SWITCH POE DAHUA 16 PUERTOS, POE+, HI-POE, 250 MTS , DH-PFS4218-16ET-240

-Switch PoE capa 2, de 16 puertos.
– Puerto 1 Y 2 compatible con Hi-PoE (60W), PoE+, PoE.
– Soporta estándar IEEE802.3 af y at indistintamente.
– Cumple con IEEE802.3, IEEE802.3u, IEEE802.3ab/z, IEEE802.3X.
– 2 puertos 1000 Base-T (Combo port).
– 16 puertos 100 Base-T (PoE power supply).
– 16 puertos PoE de 30W cada uno. (MAX 240W EN TOTAL)
– Capacidad maxima 240W repartidos en los 16 puertos.

SKU: DH-PFS4218-16ET-240 Categorías: Accesorios de CCTV, CCTV, Fuentes de Poder y Transformadores, Switchs POE Etiquetas: poe high, poe+, switch poe

Descripción

Technical Speciﬁcation

Model

DH-PFS4218-16ET-240

Ethernet Port

2*10/100/1000 Base-T (Combo port)

2*1000 Base-X (Combo port)

16*10/100 Base-T (PoE power supply)

PoE Power Consumption

Port1/2 support Hi-PoE (60W), PoE+, PoE

Each power ≤30W

Total≤240W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

Packet Forwarding Rate

5.36Mpps

Humidity

10%~90%

Power

AC 100~240V

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Working Temperature

﹣10℃~55℃

Weight

3.51kg

Dimension(W×D×H)

440mm x300mm x44mm

Accessories

Model

PFT3950

1.25G 850nm,500m,LC, Multi-mode

PFT3960

1.25G 1310/1550nm,20km,LC, Single-mode

PFT3970

1.25G 1550/1310nm,20km,LC, Single-mode

Service Characteristics

System

Username / password: admin/admin

IP Address :192.168.1.110/24

PoE Budget

MAC Table

802.1Q Standard VLAN

Spanning Tree

Port Aggregation

Static link aggregation

LACP protocol

Mirroring

Many-to-one port mirroring

Support DHCP-Client

Long Distance Mode

“Power & Data” transmission distance up to 250m

Flow Control

Half-duplex based on back pressure type control;

Full duplex based on PAUSE frame

Security Features

IP+MAC binding based on port;

IEEE802.1x port authentication

System Maintenance

One-key recovery

Support the updated packet upload

System log

High and low priority, WRR

802.1P, DSCP

Support priority according to protocol

Network Management

WEB(http and https protocol)

Support SNMP V1/V2C/V3

PoE Management

PoE setting (real-time port comsumption)

PoE event statistics

Green PoE
