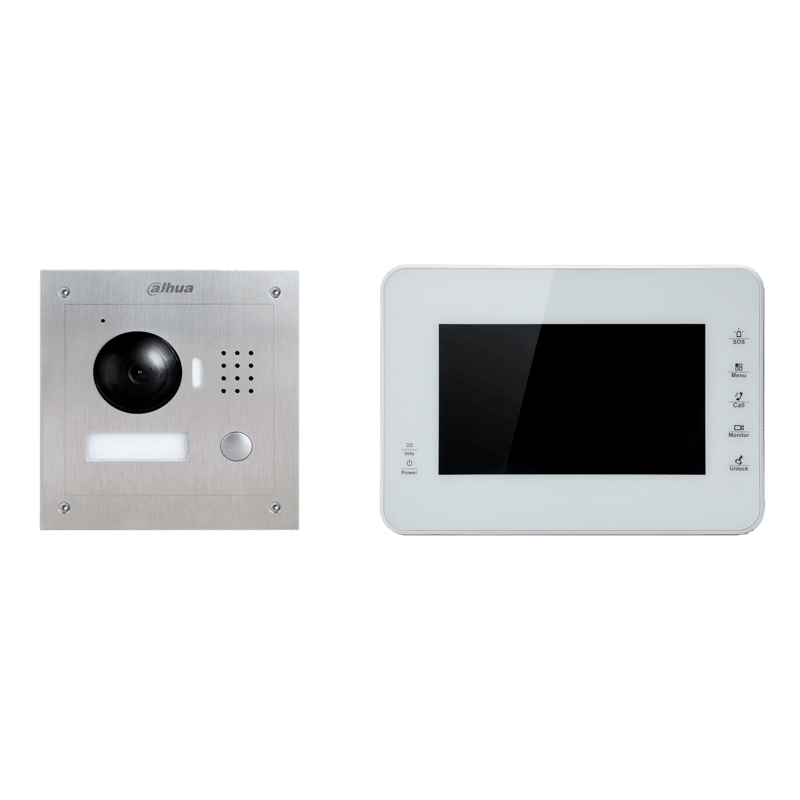

| Video Outdoor Station | |
| Mode | VTO2000A |
| System | |
| Main Processor | Embedded Micro Processor |
| Operation System | Embedded LINUX OS |
| Video | |
| Video Compression | H.264 |
| Image Sensor | 1/3” 1.3MP CMOS |
| Lens | 2.8mm |
| Angle of View | D:120° H:90° |
| Day/Night | Color Image |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | Omnidirectional Mic |
| Audio Output | Built-in Speaker |
| Bidirectional Talk | Support Dual-way Bidirectional talk |
| Operation Mode | |
| Keypad | Single Mechanical Button |
| Interface | |
| Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
| Alarm In | 2(1ch unlock button, 1ch feedback) |
| RS485 | 1 |
| Network | |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| General | |
| Ingress Protection | IP54,IK07 |
| Tamper Switch | 1 |
| Installation | Surface & Flush |
| Material | Stainless steel |
| Power | DC 12V, or supply directly by VTNS1060A |
| Power Consumption | Standby ≤1W, Work ≤10W |
| Working Temperature | ﹣40°C~+60°C |
| Relative Humidity | 10%~90%RH |
| Dimensions | 129.9mm×32.2mm×140mm |
| Weight | 0.8Kg |
| Video Indoor Monitor | |
| Model | VTH1560BW |
| System | |
| Main Processor | Embedded Micro Process |
| Operation System | Embedded LINUX OS |
| Video | |
| Video Compression | H.264 |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | All-direction Microphone |
| Audio Output | Built-in Loudspeaker |
| Bidirectional Talk | Support Dual-way Bidirectional talk |
| Display | |
| LCD Screen | 7“ 800×480, Capacitive |
| Operation Mode | |
| Input | Touch buttons |
| Interface | |
| Alarm In | 8 |
| Network | |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| General | |
| Memory Slot | Micro SD embedded, 4G |
| Installation | Flush |
| Power | DC 12V, or supply directly by VTNS1060A |
| Power Consumption | Standby ≤1.5W, work≤7W |
| Working Temperature | -10°C~+55°C |
| Relative Humidity | 10%~90%RH |
| Dimensions | 221.2mm×154.3mm×24.2mm |
| Weight | 0.8Kg |
