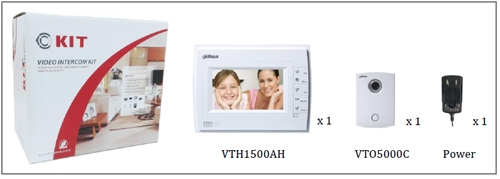

KIT INTERCOM DAHUA ANALOGO CONTIENE VT05000C Y VTH1200CS MAS LOS ACCESORIOS, VIDEO COLOR, 4.3TFT, CAT 5E FACIL INSTALACION, VISION NOCTURNA.
Specifications
Model VTO5000C
Video
Type color
Resolution 600 lines
Night vision Support
Audio
Audio Input 1-ch microphone input
Audio Output 1-ch loudspeaker output
Bidirectional
Talk
1-ch bidirectional talk, two way
Operating
modes
input One mechanical button with background light
Alarm tamper Support
General
Power DC 24V
Power
Consumption
Standby ≤1W，work≤4W
VTKB-VTO5000C-VTH1500AH
work
environment
Temperature: -20℃~+60℃
Dimensions 141mm*100mm*16.8mm（L*W*T）
Weight 0.4kg
Model VTH1500AH
System
Main Processor NEC MCU
Operation
Interface
Simple OSD message
Input Device Mechanical keys, 5
Video
Video Input 1-ch CVBS analog video
Video Display 7” color LCD, resolution: 800×480
Monitoring Support monitoring with monitor button
Audio
Audio Input 1-ch microphone input (Omni-directional electrets)
Audio Output 1-ch loudspeaker output
Bidirectional
Talk
1-ch bidirectional talk, two way
Network
Function
Net Control
Monitor & Unlock
Call management center for emergency
RS485 bus
Remotely upgrade
Interface
Net Interface
RJ45（non-Ethernet）plug connected with distributor, including power
supply, AV and control signal
RS485 Bus control and software upgrading
DC Power 24V
System Upgrading Remote network upgrading
General
Power 24V / 0.3A
Power
Consumption
max 6W
Temperature -5℃－＋55℃
Humidity 20%－90%
Dimensions 261.0mm*192.0mm*24.1mm（L*W*T）
Weight 0.6 Kg
Installation
Method
Installed on 86 box sheet metal bracket
