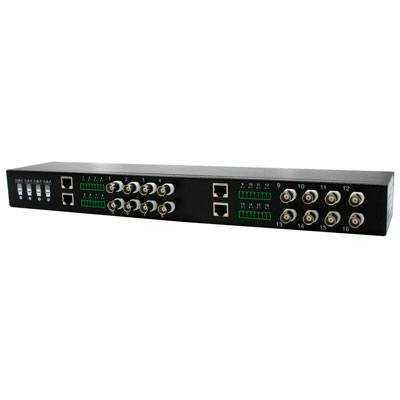

BALUN DE 16 CH HD PARA RACK DAHUA, PFM809

Model   PFM809

Properties

Transmission Signal: 16 channel HDCVI

Transmission Distance720P: 400M (max)1080P: 200M (max)

Category Type: UTP CAT5E/6

Video Transmission Properties And Port

Coaxial Video Connector: BNC

Connection Way: Spring loaded

Compatible Format: HDCVI

Resolution: 720P/1080P

Anti-interference＞60db

Protection

ESD;      1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

Coaxial Cable Connector:    2KV(common-code)

Per: IEC61000-4-5

UTP Cable Connector:       2KV(different-code), 4KV(common-code)

Per: IEC61000-4-5

Impedance

BNC Male:        75 ohms

UTP Cable:       100 ohms

Physical Properties

Dimension(L*W*H)           430mm*100mm*44.5mm(1U)

Shell:                              SECC

Color:                             Black

N.W.:                             1250g

Stability

MTBF                            >10000H

Environmental

Operating Temperature      -10~55℃

Storage Temperature        -20~70℃

Humidity                         0~95%(non-condensing)
